EBW-G series gear electron beam welding machine
EBW-G series gear electron beam welding machine
Main application: electron beam welding of automobile transmission gears.
Main specifications and models:
（1）EBW-GE Single station Gear Electron Beam Welder
（2）EBW-MG multi station (three station/four station/six station, etc.) gear electron beam welder
（3）EBW-GTD type electron beam welder for planetary gear carrier. It can realize the welding of end face circle and horizontal circle (circumferential) weld.
EBW-C series universal electron beam welding machine
EBW-C series universal electron beam welding machine
Electron beam power：4kW
Acceleration voltage：60kV
Vacuum degree of welding chamber：7×10-2 Pa
Welding chamber volume：500×360×360 mm3
（500×400×400 mm3）
Scanning system: raster, circle, etc
Tooling transmission system: with X and Y workbenches; With Z, X rotary table
PLC control: logic program control, data acquisition, storage and printing
Electron beam power：8kW/10 kW/15 kW
Acceleration voltage：60kV
Vacuum degree of welding chamber：7×10-2 Pa
Welding chamber volume (customized): standard 1000×600×700 mm
（3000×1500×1700 mm3）
Maximum penetration：≥20（mm）
Scanning system: raster, circle, etc
Tooling transmission system: with X and Y workbenches;
There are Z and X rotary worktables.
Equipped with CNC three-axis linkage control system

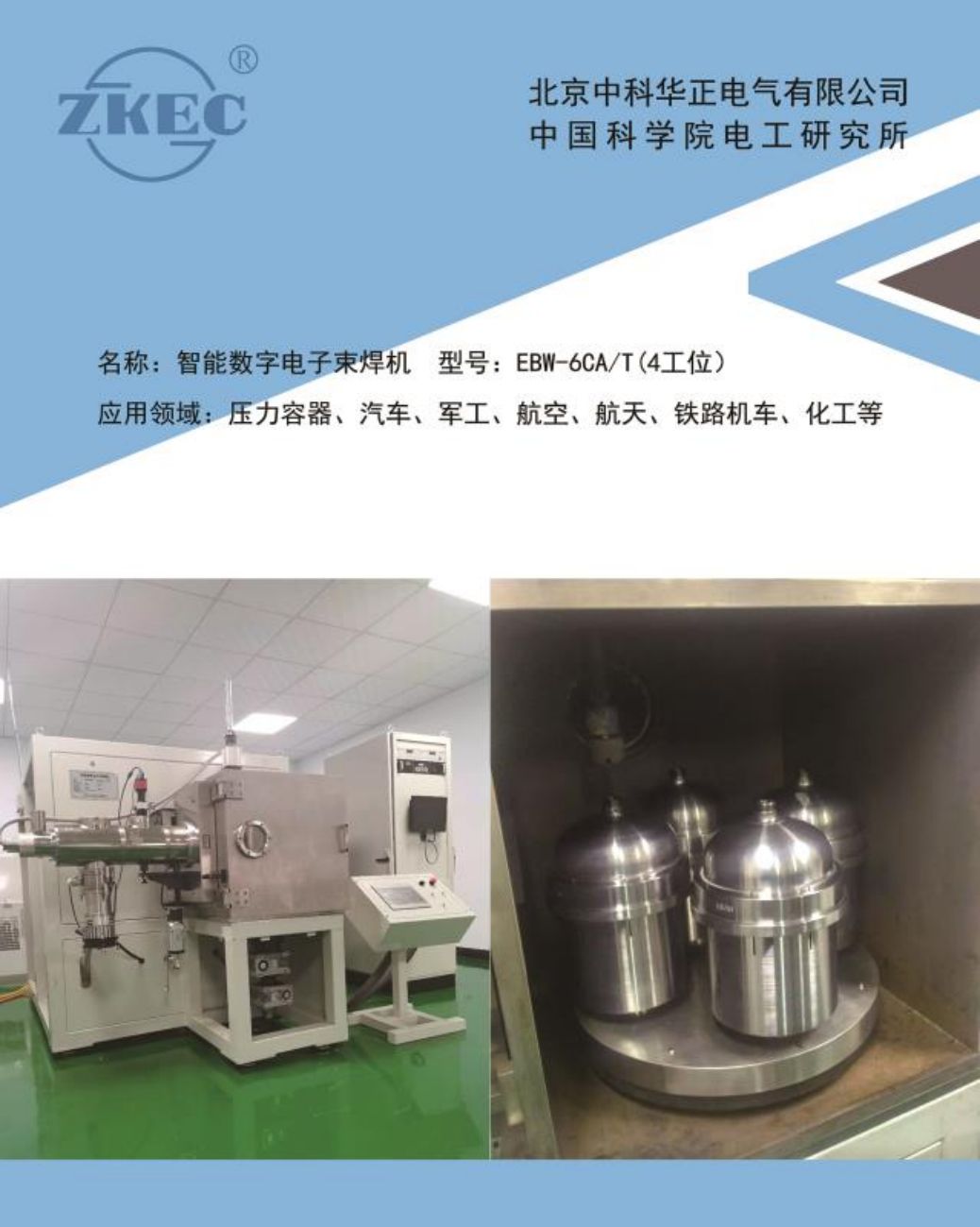

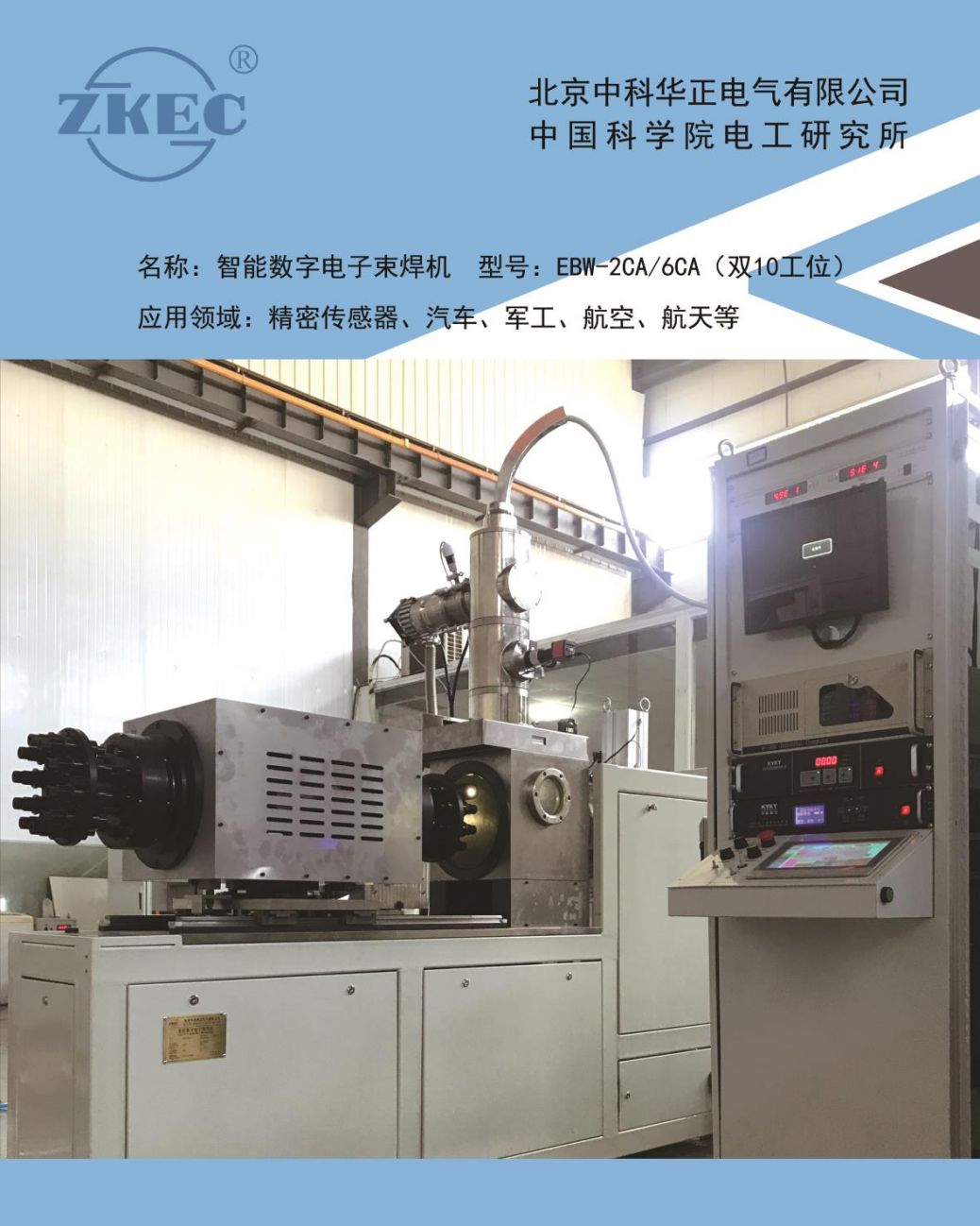

EBW-T series special electron beam welding machine
EBW-T series special electron beam welding machine
Main features: high production efficiency and cost-effective.
Main typical applications：
（1）Electron Beam Welding of Turbine Assembly of Hydraulic Torque Converter on Shanghai General BUICK Car
（2）Electron beam forming welding of the cockpit module beam of Shanghai Volkswagen POLO and TORAN commercial vehicles
（3）Electron beam penetration welding of silicone oil shock absorber
（4）Electron beam sealing welding of 24 station automobile air conditioner piston
（5）Double gun sliding seal electron beam continuous welding production line
Technical indexes of several finalized products
Technical indexes of several finalized products
